F5 8''Face and Fingerprint Machine
F5 8''Face and Fingerprint Machine
F5 8''Face and Fingerprint Machine
F5 8''Face and Fingerprint Machine -
F5 8''Face and Fingerprint Machine
- Brand :Qianhai Gole
- Model:F5
- Size:150mm*280mm*24mm
Face, fingerprint and ID verification terminal is a multi-functional handheld tablet. It is built-in with international?advanced?biological recognition algorithm, setting fingerprint&face identification, collection and verification as a whole. It has been widely used in education, enterprise, telecom, bank, security, civil aviation, police and post office.
Product features
● Adopts Intel Cherry trail T3(Quad-core )Z8350 design；
● An integrative device with high-tech multi-functional Biometrics；
● The image and fingerprint in ID card can be extracted；
● The image and fingerprint of cardholder can be collected；
● Verifying Biometric cardholder；
● Efficiently solve problems of fake certificates, imposture, discrepancy between cardholder and card, true and false identification；
● Full automatic operation. It can use single or collocate with network, providing second development interface；
Product specification
Specifications | ||
| Type | Details | Description |
| Product Modality | Product Form | Face and Fingerprint Machine |
| Size | 150mm*280mm*24mm | |
| LCD | Screen Size | 8" |
| Screen Resolution | 800*1280 IPS | |
| TP | Touch Screen | capacitive screen G+G 5 ponits touch |
| Battery | Type | 3.8V/9500mAh |
Hardware Configuration | ||
| Type | Details | Description |
| CPU | Type | Intel Cherry trail T3(Quad-core )Z8350 |
| Frequency | 1.44 ~1.92GHz | |
| GPU | Type | Intel Gen 8-LP |
| Multimedia support hardware decoder | Pictures | BMP, JPG, GIF, PNG |
| Video | MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) | |
| Audio | MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (Need license) | |
| RAM | LPDDR3 | 2GB LPDDR3 |
| ROMFlash | Nand Flash | 32GB |
| Speaker | Audio Output | sereo built-in with 2*8Ω/1W |
| MIC | Microphone Recording | high sensitivity-45db |
| Sensor | Built-in | three axises rotating |
| Fingerprint | Fingerprint Identification | support biometric fingerprint recognition |
| NFC | NFC Induction | support ID and swiping |
| Camera | Face Recognition | support biometric face recognition |
Connectivity | ||
| Type | Details | Description |
| WIFI | WIFI Module | WIFI 802.11b/g/n+BT 4.0 |
| Ethernet | Ethernet RJ45 | support 100M |
| BT | Wireless BT Transmission | support BT4.0 |
Interface | ||
| Type | Details | Description |
| TF Card Slot | Expand External Storage | support 64GB TF card |
| USB | External Storage and Data Transfer | HOST *2 |
| USB | Micor USB Charging | Micor USB *2 |
| Earphone | Audio Output&MIC Input | 3.5mm standard headphone jack |
| HDMI | HD Audio&Video Output | HDMI A |
| DC | DC Charging | DＣ5V/4017 |
Standard Accessory | ||
| Type | Details | Description |
| Adapter | Standard Configuration | 5V/3A |
Software | ||
| Type | Details | Description |
| OS | Version | WIN 10 HOME |
| Language | Multi-language | |
| FLASH | FLASH supports hardware decoding，F(xiàn)LASH 11 | |
| HTML5 | support | |
| System SW | Pre-install application program | SupportOffice word 、Excel、 PPT、 PDF |
| ES file explorer | ||
ES file manager | ||

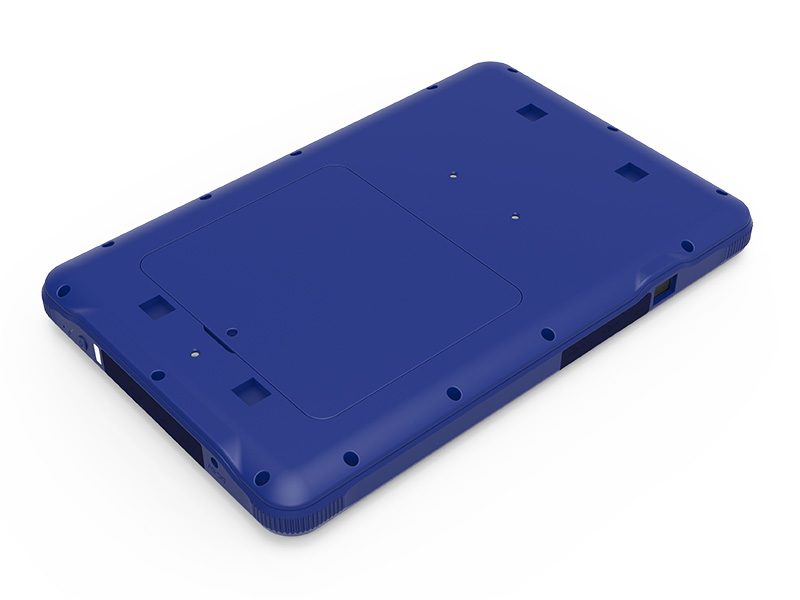

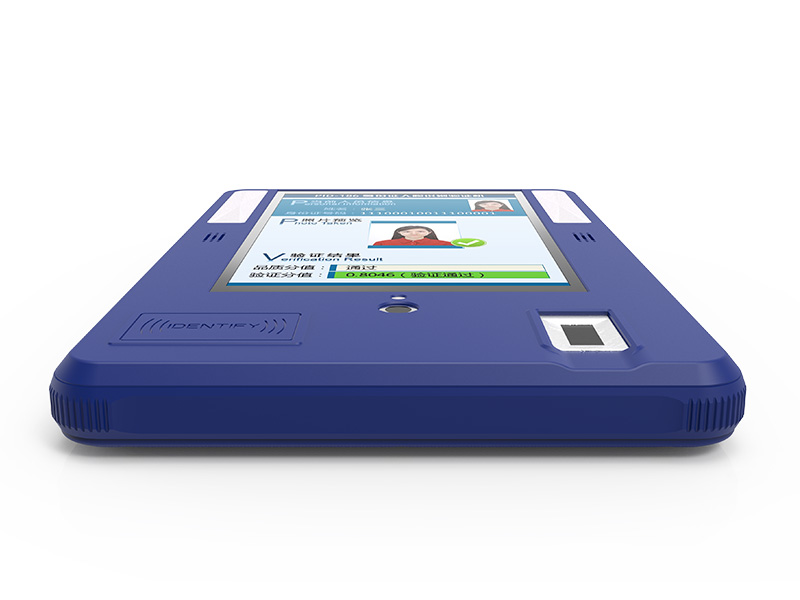

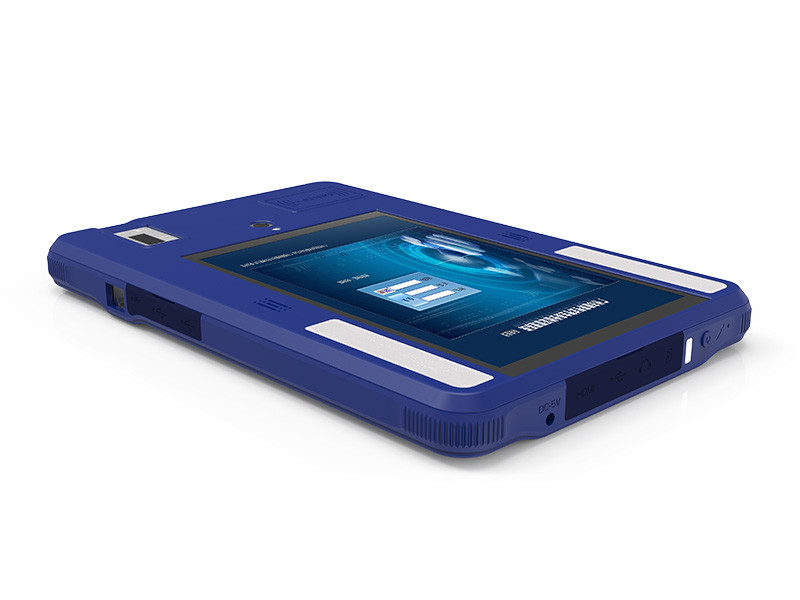

Product interface
